    TK THYSSENKRUPP Escalator Chain Travelator Pallet Step Moving Walk Chain Pitch 135.4mm

    Ask Lasest Price
    Brand Name : TK
    Payment Terms : Company Bank, Western union, alibaba, Paypal etc
    Supply Ability : 10000 pitch per month
    Delivery Time : Normally 2-3 working days after payment
    MOQ : 1PC
    • Product Details
    • Company Profile

    TK THYSSENKRUPP Escalator Chain Travelator Pallet Step Moving Walk Chain Pitch 135.4mm


    The escalator step chain is used in escalators and moving sidewalk systems to transmit power and transport passengers. It is widely used in escalator facilities such as subways, high-speed railways, airports, shopping malls, and large supermarkets.


    Description for Factory Directly Sales TK THYSSEKRUPP Escalator Travelator Pallet Step Moving Walk Chain Pitch 135.4mm

    PROCESS OF TECHNOLOGY DEVELOPMENT OF OUR FACTORY


    1. In 1989, we developed and designed a 2-inch modernized chain;

    2. In 1991, developed and designed the escalator step chain FT3.4 (T100) with a pitch of 100mm for Suzhou Elevator Co., Ltd.


    Details for Factory Directly Sales TK THYSSEKRUPP Escalator Travelator Pallet Step Moving Walk Chain Pitch 135.4mm

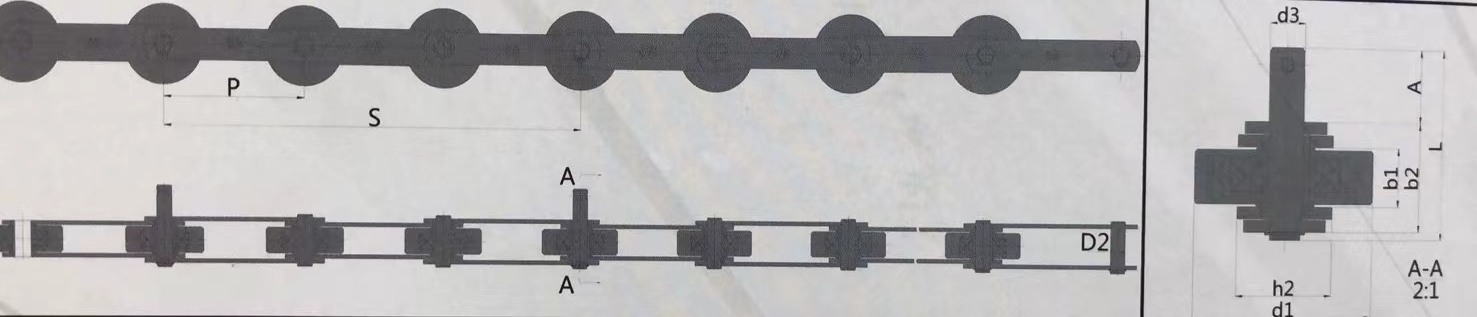

    Part No.PitchStep DistanceRoller diameterInner Width of inner pitchOuter Width of outer pitchHeigh of inner chain plateDiameter of PinLength of hollow pinProlonged end for the pin shaft of the stepsAnti-pull load
    PSd1b1b2h2d2Ld3AminKN
    mmmmmmmin (mm)max(mm)max(mm)max(mm)mmmax(mm)mm
    T135.4D135.46406.476.223.643.0535.212.75012.73170
    T135.5J135.46406.476.223.641.0535.212.748153270
    T133B133.33400802748.840.214.635614.6331180
    T133C133.33400802748.840.214.635614.6331140
    T133D133.3340076.223.644.840.215521539180
    T133E133.33400762748.840.214.635514.6331180
    TL133D133.3340076.223.644.835.214.635214.633690/125
    TL133E133.3340076.223.644.835.212.75212.73990
    TL133F133.33400702748.835.214.635614.633190
    TL133G133.3340076.223.644.835.212.75212.73190
    TL133H133.3340076.223.644.835.215521539123
    TL133J133.334007623.645.335.214.635214.633190/125
    TL133K133.3340076.223.643.0535.212.75012.73670
    TL133L133.33400762745.7540.212.675112.673190
    TL133M133.33400702743.0535.212.75012.73670
    T133N/N1133.33400702745.7540.212.675112.673190
    TL133P133.33400762745.835.212.75112.73175
    TH133133.33400802748.350.22456.514.6336200
    FTH133B1133.33400802748.550.2245514.6331225
    FTH133C133.33400802750.355.22458.51831300
    FTH133G133.334001103455.355.22463.51831260
    JTH133133.33400802748.350.22456.51831220
    JTH133C133.33400802748.350.214.6356.51831220
    JTH266133.33266.66802748.350.22456.51831220
    TL131D131.33394802748.835.214.635614.6331123


    Part No.PitchStep DistanceRoller diameterInner Width of inner pitchOuter Width of outer pitchHeigh of inner chain plateDiameter of PinLength of hollow pinLength of hollow pindiameter of hollow pinAnti-pull load
    PSd1b1b2h2d2L1L2d3minKN
    mmmmmmmin (mm)max(mm)max(mm)mmmmmmmmminKN
    XJF131131.33262.66702748.840.214.635575.318.26150
    XJF131A131.33262.66702748.840.218.265675.318.26150
    KF266133.33266.66702748.840.214.635575.318.26150
    SF131131.33262.66702748.840.214.635575.318.26150
    SF131A131.33262.66702748.840.214.635575.318.26160
    F135.4135.46270.9276.23444.645.212.75167.720115
    F135.4D135.46270.9276.23444.645.2205167.720115

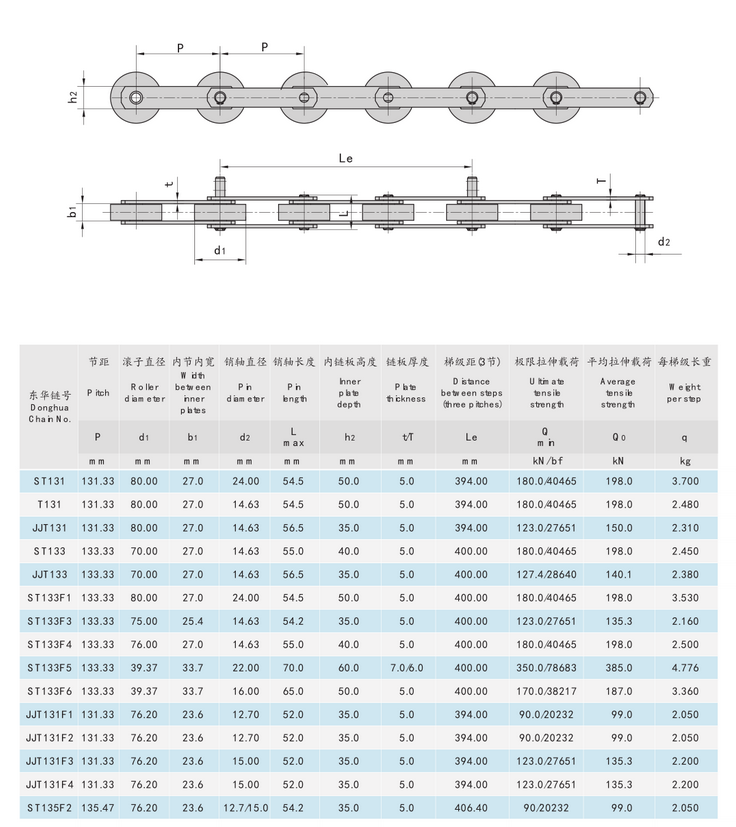

    Pictures for Factory Directly Sales TK THYSSEKRUPP Escalator Travelator Pallet Step Moving Walk Chain Pitch 135.4mm
