    Otis Mitsubishi Kone Escalator Chain Sidewalk Handrail Driving Chain Double Pitch

    Ask Lasest Price
    Brand Name : SULAB
    Model Number : Driving Chain Double Pitch
    Payment Terms : Company Bank, Western union, alibaba, Paypal etc
    Supply Ability : 10000 pitch per month
    Delivery Time : Normally 2-3 working days after payment
    MOQ : 1PC
    • Product Details
    • Company Profile

    Otis Mitsubishi Kone Escalator Chain Sidewalk Handrail Driving Chain Double Pitch


    Details for Otis Mitsubishi Kone Escalator Sidewalk Handrail Driving Chain Double Pitch



    ISO CHAIN NO.ANSI CHAIN No.PitchRoller diameterWidth between inner platePin diameterPin lengthInner plate depthPlate thicknessTrabserverse pitchWeight per meter
    Pd1 maxb1 mind2 maxL maxLc maxh2 maxT maxPtq
    mmmmmmmmmmmmmmmmmmkg/m
    04C-225-26.3503.33.182.3114.5015.006.000.806.400.28
    06C-235-29.5255.084.773.5822.5023.309.001.3010.130.63
    085-241-212.7007.776.253.5825.7026.909.911.3011.950.81
    08A-240-212.7007.957.853.9631.0032.2012.001.5014.381.12
    10A-250-215.87510.169.405.0838.9040.4015.092.0318.112
    12A-260-219.05011.9112.575.9448.8050.5018.002.4222.782.92
    16A-280-225.40015.8815.757.9262.7064.3024.003.2529.295.15
    20A-2100-231.75019.0518.909.5376.4080.5030.004.0035.767.8
    24A-2120-238.10022.2325.2211.195.8099.7035.704.8045.4411.7
    28A-2140-244.45025.425.2212.7103.30107.9041.005.6048.8715.14
    32A-2160-250.80028.5831.5514.27123.30128.1047.806.4058.5520.14
    36A-2180-257.15035.7135.4817.46138.60144.4053.607.2065.8429.22
    40A-2200-26.35039.6837.8519.85151.90158.8060.008.0071.5532.24
    48A-2240-276.20047.6347.3523.81183.40190.8072.399.5087.8345.23

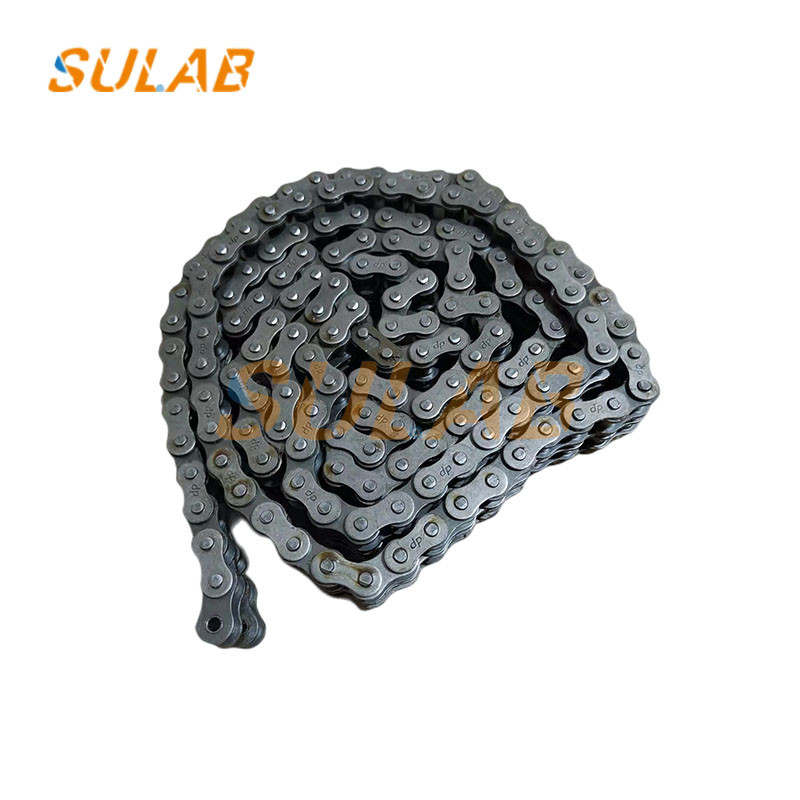

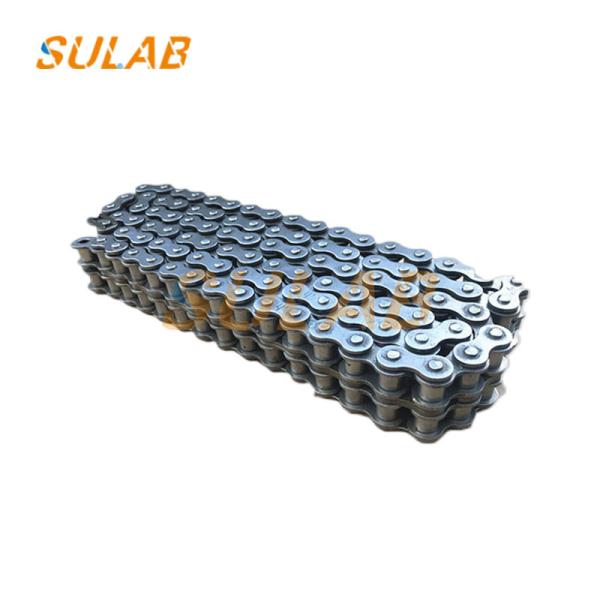

    Pictures for Otis Mitsubishi Kone Escalator Sidewalk Handrail Driving Chain Double Pitch


    Otis Mitsubishi Kone Escalator Chain Sidewalk Handrail Driving Chain Double Pitch


    The design of escalator sidewalk double-row chain includes the choice of pitch, center distance, and the design of sprocket and chain. The pitch and center distance are selected according to the transmission ratio and calculation results. Sprocket selection Roller chain sprocket, the selection of its index circle diameter, tooth tip circle diameter, tooth root circle diameter, maximum tooth root distance and other dimensions are very important to the transmission stability and the life of the sprocket. Roller chain is a standard part, and its series and size are selected according to performance requirements and through national standards.
